DoorBird | Access Control Keypad - Flush Mount

The DoorBird A1121 is a compact, IP-based multi-technology access control system that can also be installed as a stand-alone solution. It enables secure access control in areas where the installation of an IP video door station is not possible or desired, e.g. at back and side doors, garages and underground garages, storage and packing rooms or bicycle and machine rooms. It can also control elevators. The keypad is illuminated, so you can install the device even in an unlit environment.

Thanks to its compact shape, the device can be easily installed on a door frame. The access control device is also ideal if you wish to create one-time or temporary access codes for visitors.

The device is designed for indoor and outdoor installation. The retrofit version is available for existing front panels. Our front panel is made of solid 3 mm (0.12 in) brushed stainless steel. All buttons are backlit.

The DoorBird A1121 can be connected to the network via WLAN or LAN cable. If connected using a network cable, the device can be powered via Power over Ethernet (PoE). Should the Internet temporarily fail, all functions continue to operate within the local network

Apart from the network connection and power supply (PoE or 15 VDC), no further hardware is required. The software for the IP access control solution runs within the device.

The DoorBird A1121 is equipped with two relays and has a configurable Wiegand output interface for integration into an existing access control or alarm system.

Using HTTP(S) calls, you can also integrate the device with third-party home and building automation systems.

QUALITY MADE IN GERMANY

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Bluetooth Low Energy (BLE)

• For access control,compatible external sensors and smart
  locks. (future firmware update)

RFID

• Keyfob or Keycard
• 125KHZ and 13.56MHz

Keypad Module

• Configurable via App
• More than 1000 individual PIN codes
• Individual events(e.g. switch a relay, HTTP(s)request)

Wiegand

• On smartphones, tablets(iOS, Android), IP andlandline phones (SIP)

Tamper Sensor

• For night vision mode

 Easy self-install

• Quick installation viaQR code scan

Individual Action Schedules eg:

• RFID card "abc“ has only access on Wednesday from 9 am until 11
  am
• Keycode 1234 switches on external lamp between9 pm and 6 am

Open API

• Local interface forintegration with third-partysystems and SIP

Two freely configurablebi-stable
switching relay

• Control two doors or gates via App
• Status configurable via App: temporary or permanent circuit

Front panel:

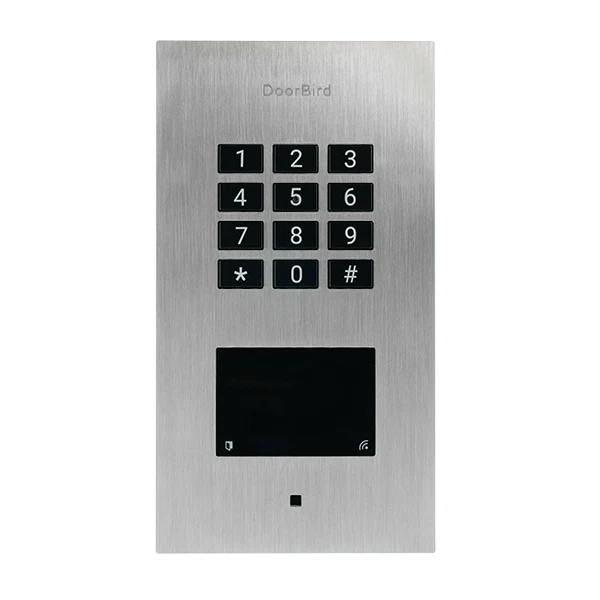

• 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A

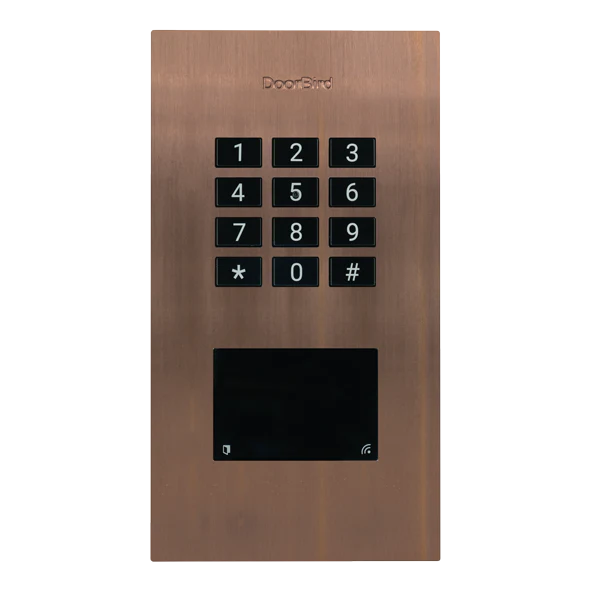

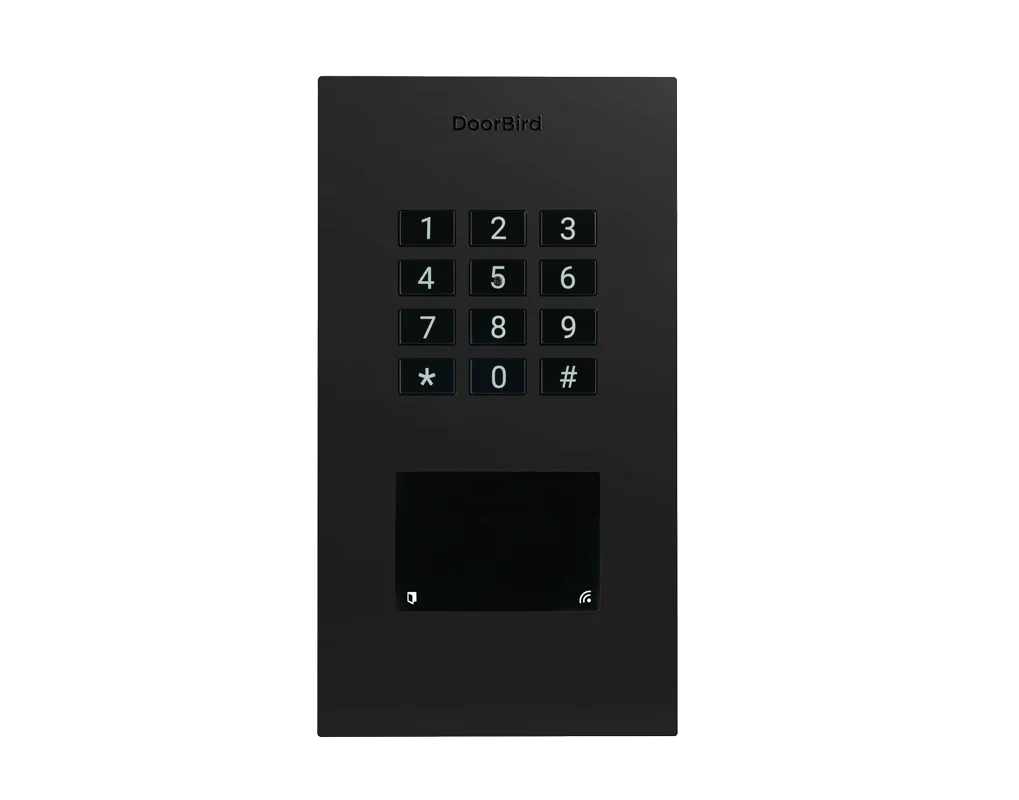

  and V2A with bronze and titanium finish, DB 703, RAL 7016

Mounting housing (backbox): Stainless steel

Mounting type:

• Flush-mounted.
• Surface-mounted
• retrofit version sold separately

Keypad Module:

• 12 keys, illuminated,
  configurable via App, e.g. Individual PIN codes, Individual events (e.g.
  switch a relay, HTTP(s) request), Individual schedules, Up to 500 PIN codes
  manageable

Power supply: 15 - 48 V DC (max. 15 W) or
Power over Ethernet (PoE 802.3af Mode-A)

Weight: 465g

Connectors:

• LAN/PoE (T+, T-, R+,
  R-)
• 2 x Bistable latching relay
  (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
• 15 – 48 V DC input (+, -),
  max. 15 W
• Wiegand

Weather-proof: Yes, IP65

Approvals: IP65, CE, FCC, IC, RoHS,
REACH, IEC/EN 62368

Dimensions:

• 152 x 83 x 31 mm (H x W x D)
• 5.99 x 3.27 x 1.22 in (H x W
  x D)

Scope of delivery:

• 1x Main Electrical Unit with
  front panel 1x Wall mounting bracket
• 1x Power supply unit (mains
  adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V
  DC)
• 1x Quickstart guide with
  Digital Passport 1x Installation manual
• 1x Small parts

Warranty:

• 2 Years see doorbird.com/warranty
